product description :
highly durability finned bellows cover black and silver for
traverse rate 120M/min
Allows for traverse rate 120 M/min
A: High hardness stainless steel
B: Bellows cover
C: stiffener

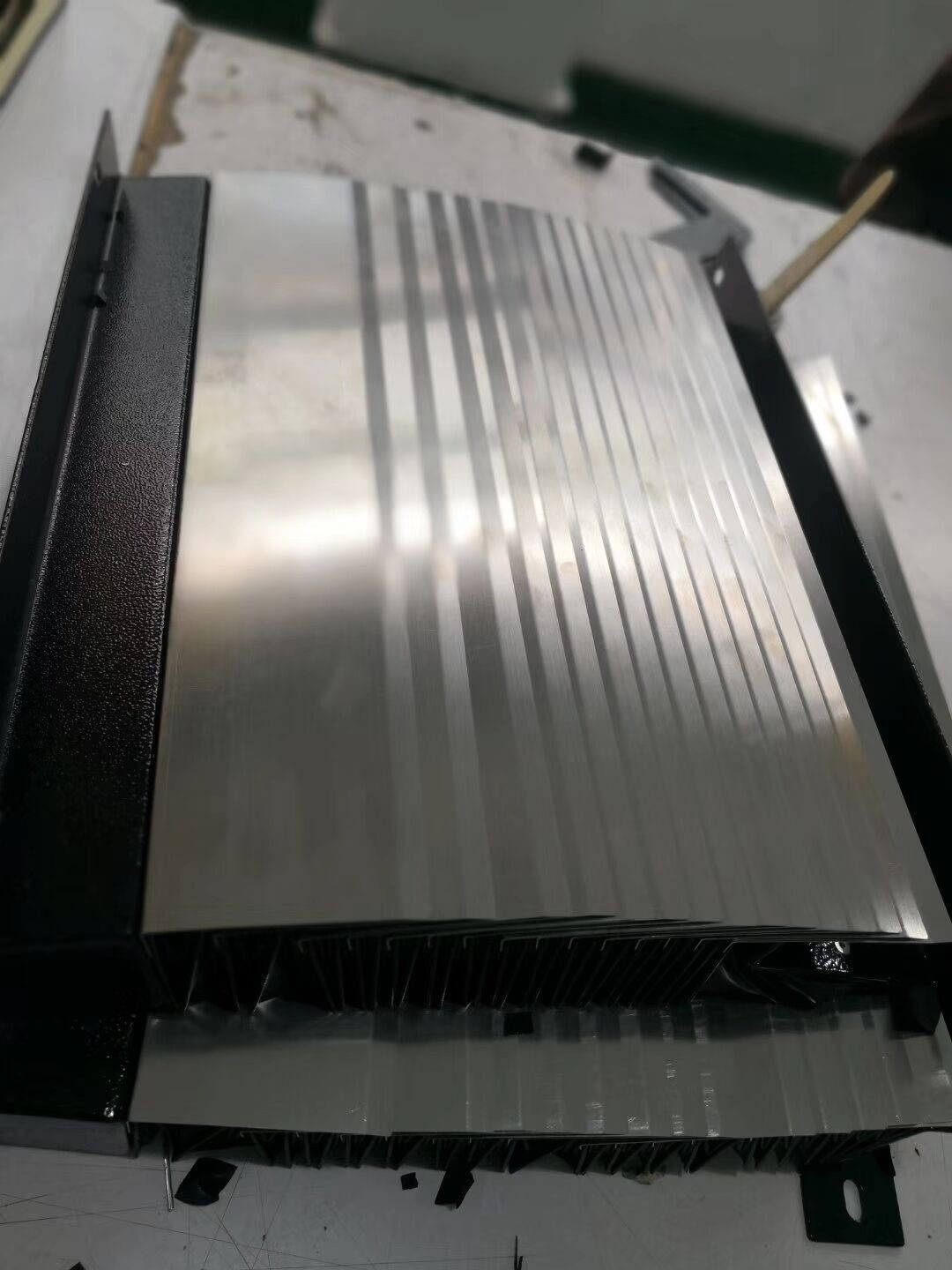

This finned bellows cover are suitable for large amounts of
high-temperature chips ,ultra large travel and insufficient space
for mounting metal sheet guard .
applicable machines include horizontal machining centers ,
travelling column machining centers and various CNC machining
centers . the corrugation top is equipped with stainless steel or
aluminum alloy sheet for surface protection to prevent
high temperature from damaging the cover while ensuring superior
protection effect .
Do you need vertically mounted bellows ?without lamella overhang ?
The bellows with hinged lamellas are the perfect solution for you .
Each lamella is flexibly fixed to the PVC frame . therefore , the
lamellas can lie down flat on the machine enclosure
at the bottom .
Combine the rigidity and durability of steel way covers with the
compression and flexibility of fabric bellows .
steel cladded is added to fabric bellow when : debris is red
hot/swarf is razor sharp /
space is limited /applications are vertical .
Fixed or hinged (hinged design has overhang- good for vertical
applications )
Features &Benefits :
Added protection against hot chip loads and weld spatter resistance
prolongs operation life of bellows .
Smaller footprint and great extended -to-retracted ratio compared
to telescoping steel way covers .
Applications typical :
Vertical , horizontal or cross-rail protection for machine way
protection .
Fixed or hinged ,stainless steel lamellas can be added to protect
the bellows
against hot , sharp-edged swarf ,or mechanical strain .
| L max | max .extending length |
| L min | min. compression length |
| Z | extending length of protective sheet metal/max .extending
length-min compression |
| ST | Length = total working stroke |
| H | Height of corrugation |
| W | width of protective curtain |
| L | accumulated thickness of protective metal sheet |
High speed traveling /Resist high temperaure chips /light weight
Bellows cover in combination with high hardness stainless steel
make it suitable for metal cutting chips .
outstanding forming technology and structure design enable the
series of cover to be ideal for protecting slide ways with extra
large traveling .
low noise and long service life . available to equip with sliding
and synchronized mechanism for rapid traverse .
customized product .
